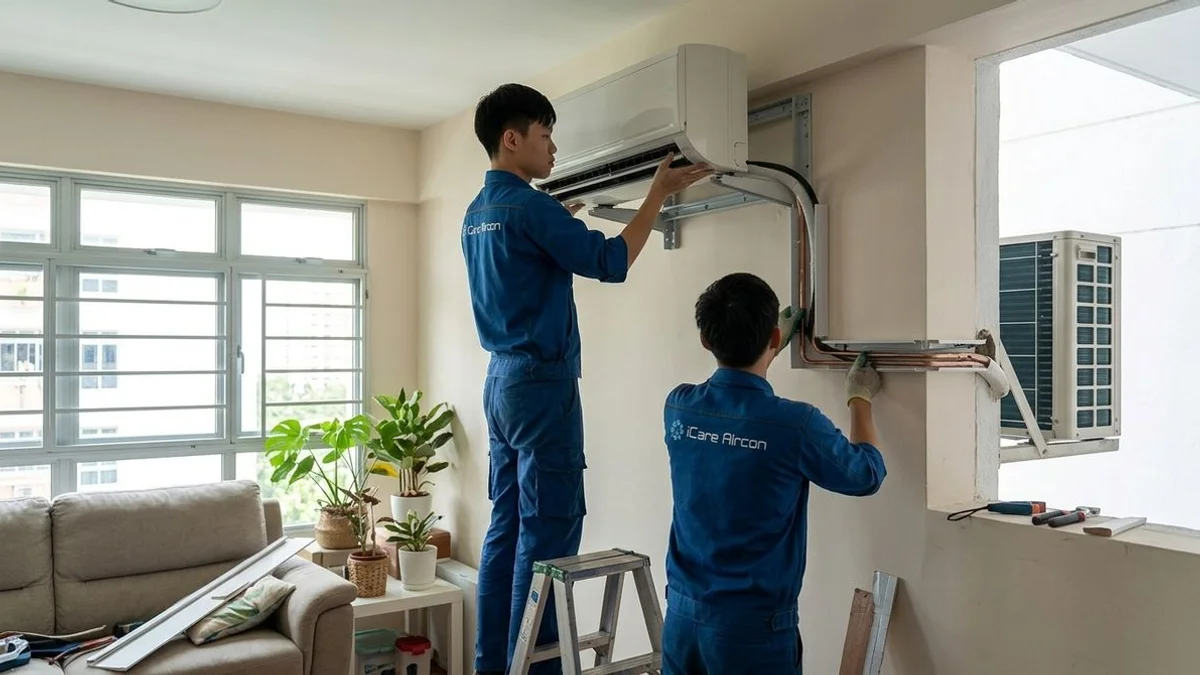

What to Expect During Aircon Installation Day

We founded iCare in 2016, and since then, James Tan, Sandra Lim, and our team have heard one specific question every single week. Singapore homeowners constantly ask about the aircon installation day what to expect from start to finish.

The short answer matters, but the practical context is what actually keeps your equipment running cool and your SP Group bill low.

Our goal is to walk you through the process exactly as a technician would explain it on site. This straightforward guide forms a core part of the Aircon Installation coverage at iCare.

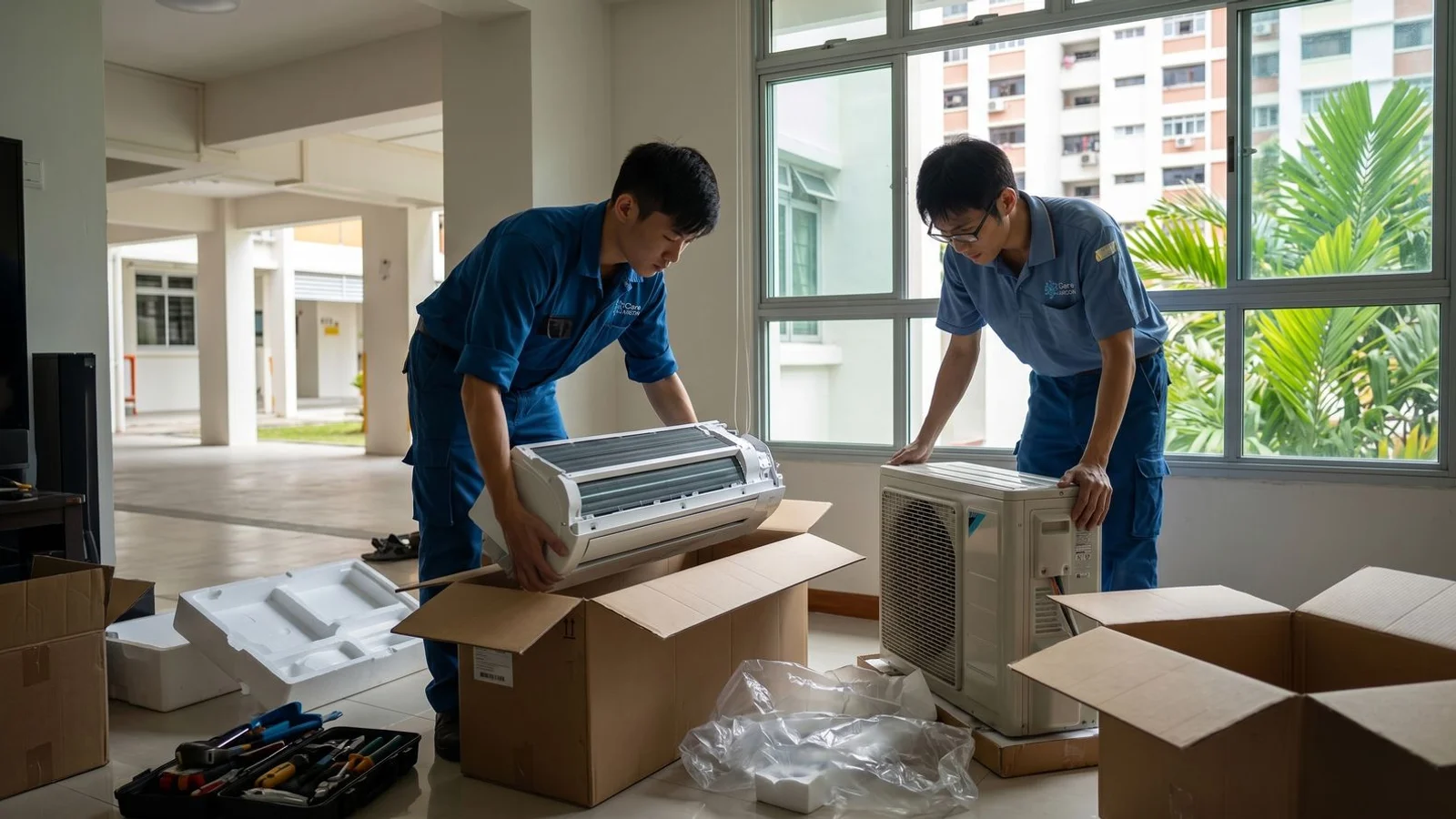

Pre-arrival checklist (clearance, MCST notice, parking)

Proper preparation before the technicians arrive saves hours of delay and prevents regulatory headaches. We always ask customers to clear a two-metre radius around the indoor and outdoor installation areas. Moving furniture and fragile items protects your property from dust and accidental bumps.

Condominium residents face strict MCST working hours that dictate the schedule. Our teams schedule heavy work between 9 AM and 5 PM on weekdays to comply with typical condo management rules. Saturday work is typically restricted from 9 AM to 1 PM across most estates.

HDB regulations also mandate specific weight and electrical limits for the external ledge. We verify that your outdoor units stay within the official 110kg limit per wall panel before starting the job. An installation day checklist helps you track these exact requirements.

• secure your MCST permit at least three days before the scheduled date
• confirm parking clearance for a standard commercial van
• check if your HDB block has the upgraded 40-amp main switch
• cover nearby beds and sofas with plastic sheeting

Typical durations

A single split unit installation usually takes between four and six hours to complete. We use these standard timeframes to scope every visit for Singapore homes. A larger System 3 setup requires six to eight hours.

The actual duration heavily depends on the property type and structural layout. Our technicians often finish standard HDB setups faster than complex condominium jobs. Older properties might need extra time to run new electrical isolators.

Property Type	System Type	Estimated Duration
Standard HDB	Single Split	4 to 6 Hours
Standard HDB	System 3	6 to 8 Hours
Condominium	System 3 or 4	Up to 2 Days (due to MCST rules)

Complex routing through false ceilings also extends the daily timeline. We always allocate buffer time to handle these unexpected layout challenges.

What’s covered

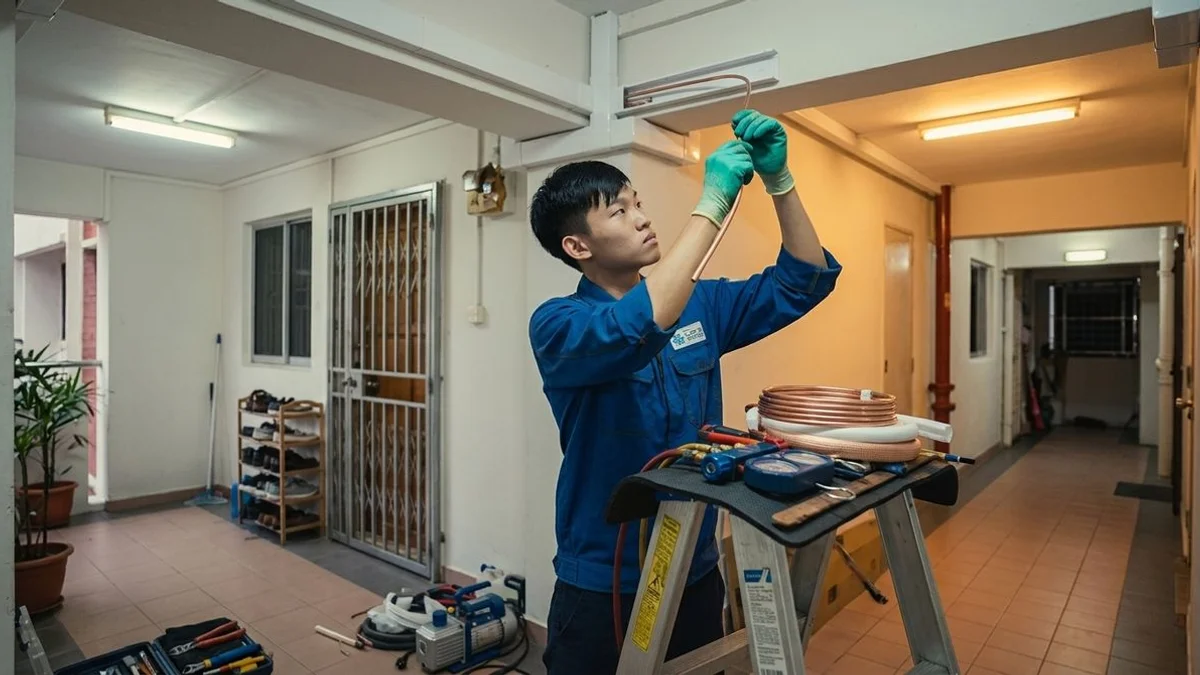

A comprehensive installation package includes trunking, water trays, and high-quality copper piping. The exact materials used directly impact how long the new cooling unit will last. Our standard service includes colour-matched trunking to blend naturally with your walls.

The thickness of the insulation is a critical detail in a humid climate. Local guidelines show the older 3/8-inch standard often fails to stop sweating and leads to water drips. We upgrade all jobs to use 1/2-inch thick Armaflex Class O insulation to prevent condensation.

Material Specifications and Piping

The copper pipe gauge determines how well the system handles high-pressure R32 refrigerant. Technical reports indicate that cheap SWG 23 pipes carry a high risk of bursting or leaking over time. We strictly use SWG 22 grade copper pipes with a 0.71mm wall thickness for superior durability.

Drainage pipes are equally important to prevent future clogs and water damage. Industry plumbing standards confirm that upgrading from a standard 13mm to a 16mm uPVC drain pipe allows water to flow much faster. Our crews install these wider 16mm pipes to drastically reduce the risk of chokes and indoor leaks.

For a related deep-dive, see our guide on What Size Aircon Do I Need? BTU Sizing for Singapore Homes.

Drilling and patching

Creating pathways for the new piping requires core drilling through concrete walls. HDB guidelines strictly prohibit hacking into structural beams or columns. We carefully inspect the floor plan to identify structural walls before starting any heavy drilling.

The structural elements are clearly indicated by thick black lines on your official floor plan. Housing regulations dictate that noisy works like heavy drilling are legally restricted to 9 AM to 5 PM on weekdays. Our installers use specialised tools to make precise holes that comply with these regulations.

Wall hacking and demolition are classified as noisy works and are strictly restricted to weekday business hours.

A poorly sealed hole allows hot air and pests to enter the living space. We apply a generous layer of weatherproof putty to completely close the gap around the pipes. Proper patching protects your home and ensures the surface looks neat.

Post-install gas test, cooling test, warranty handover

The final hour of the visit focuses entirely on safety checks and system calibration. We run the unit at its lowest temperature to verify the cooling performance across all rooms. Technicians perform a pressure test to ensure the R32 gas is properly sealed inside the copper lines.

A detailed handover process protects your investment and clarifies the maintenance schedule. Our team will walk you through the remote control functions and show you how to clean the basic filters. In Singapore, a standard package includes a one-year installation warranty and a five-year compressor warranty.

• gas leak check to verify pressure levels
• drainage test to confirm smooth water flow
• documentation handover for SP Services Form CS/5H
• warranty registration for the compressor and parts

Keeping a record of the installation date makes future servicing appointments much easier. We leave the workspace exactly as clean as we found it before saying goodbye.

Ready to Book?

The next step is getting a transparent price for your specific home. Scheduling an onsite survey takes the guesswork out of the final cost. Our fastest path to a fixed quote is a quick phone call to +65 3138 2108.

You can also message the team on WhatsApp or use the booking form on the contact page. The full technical breakdown is always available in the main Aircon Installation guide.
